Mofani oa Hao oa Setsebi sa Flange
Octal Pipe ke morekisi ea hloahloa le ea kopaneng oa lihlahisoa tsa oli le litharollo tsa tšepe tsa indasteri tse thehiloeng China. Kaha re na le boiphihlelo bo bongata mabapi le phepelo, kabo, le tlhahiso, re ipapisitse le ho fana ka lisebelisoa tse ngata tse fapaneng tsa tšepe bakeng sa likarolo tsa oli le khase, matla le indasteri.
Ke Hobane'ng ha U Re Khetha
Tiiso e Phahameng ea Boleng
Liphaephe tsa rona tsa tšepe li etsa liteko tse matla 'me li khomarela litekanyetso tsa machaba, ho netefatsa hore li tšoarella ka mokhoa o ke keng oa lekanngoa, ho hanyetsa kutu, le ho sebetsa maemong a feteletseng.
Litifikeiti
Sehlahisoa se seng le se seng se tšehetsoa ke ts'ebetso e felletseng ea lisebelisoa, litifikeiti tsa leloala, le ho latela maemo a machabeng joalo ka API, ASTM, ASME, EN, le ISO.
Litheko tsa tlhōlisano
Re fana ka lipeipi tsa tšepe tsa premium-ka litjeho tse loketseng, ho ntlafatsa boleng ka ho etsa thepa le taolo ea phepelo ea thepa ntle le ho sekisetsa boleng.
Phatlalatso e potlakileng le e ka tšeptjoang
Ka ho sebelisa thepa e sebetsang hantle ea thepa ea leoatleng le marang-rang a lefats'e, re netefatsa hore lipeipi tsa tšepe li romelloa ka nako leoatleng, ho fokotsa tieho le ho boloka ts'ebetso ea hau ea indasteri ka nako.

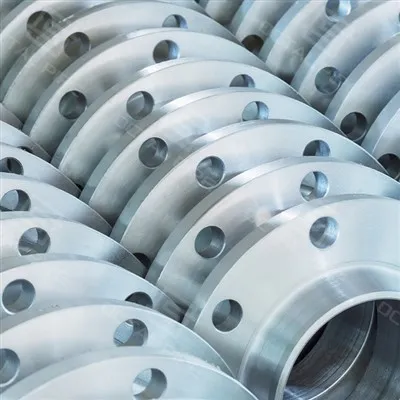

Weld Neck Flange
| Litekanyetso | ASME B16.5 (½″–24″), ASME B16.47 (26″–60″) |
| Khatello Ratings | Sehlopha sa 150 - 2500 |
| Boholo Range | NPS ½″ - 60″ |
| Mefuta | Standard, Long Weld Neck, Ho fokotsa WN, RF, RTJ, Flat Face |
| Lisebelisoa | Carbon Steel (A105, A350 LF2), Alloy Steel (F11, F22, F91), Stainless Steel (304/304L, 316/316L), Duplex/Super Duplex |
Mekhoa ea Moralo
1
ASME B16.5 (NPS ½" – 24")
2
ASME B16.47 Series A & B (NPS 26" – 60")
3
MSS SP-44, API 605 (maemo a tlatsetso)
Lisebelisoa
| Tšepe ea Carbon | ASTM A105, A350 LF2, A694 F52–F70 |
| Alloy Steel | ASTM A182 F11, F22, F91 |
| Stainless Steel Weld Neck Flange | ASTM A182 F304/304L, F316/316L, F321, F347 |
| Duplex le Super Duplex | ASTM A182 F51, F53, F55 |
| Khatello Ratings | Sehlopha sa 150 - 2500 |
Melemo ea Bohlokoa ea Weld Neck Flanges
Phatlalatso e Phahameng ea Khatello
The tapered hub e fana ka matla a phahameng ka ho fetisisa, e leng se etsang hore e be se loketseng bakeng sa maemo a thata a ho sebetsa.
Khahlano e Matlafalitsoeng ea Mokhathala
Butt{0}weld connection e fana ka khanyetso e ntle ea ho thothomela le ho feto-fetoha ha khatello.
Ho Tiisoa ho Tšepahalang
Moralo o fokotsa moferefere le khoholeho e melang, e etsa bonnete ba hore ho na le-tiiso ea ho lutla.
Weld Neck Flange Dimensions
Mefuta e fapaneng ea mefuta ea Class 150 ASME B16.5 weld neck flanges e teng, ho tloha ho 1/2 ″ ho isa 24 ″. Boholo bo bong le bo bong bo na le bophara bo fapaneng ka ntle le kahare, botenya ba sefahleho bo phahamisitsoeng, le masoba a 'maloa a bolt. Saese e nyane ka ho fetesisa e na le bophara ba 3.50 ″ le masoba a mane a bolt, ha e kholo e na le bophara ba kantle ba 32.00 ″ le botenya ba sefahleho bo phahameng ba 5.69 ″.
Mefuta e fapaneng ea Socket Weld Flanges (Ho ipapisitsoe le Mofuta oa Sefahleho)
Socket weld flanges e fumaneha ka mefuta e fapaneng ea sefahleho, e 'ngoe le e' ngoe e fana ka litšobotsi tse ikhethang le lits'ebetso ho latela litlhoko tsa sistimi. Mona ke mefuta e fapaneng:
Sefahleho se Phahametseng (RF)
Ena ke mofuta o tloaelehileng oa sefahleho o sebelisoang ho li-socket weld flanges. Sebopeho sa sefahleho se phahamisitsoeng se fana ka sebaka se seholoanyane bakeng sa gasket, ho matlafatsa bokhoni ba eona ba ho tiisa. E loketse lits'ebetso tse phahameng- tsa khatello moo ho bohlokoa ho thibela ho lutla. Sefahleho se phahamisitsoeng se sebetsa ka ho khetheha ho abela moroalo oa gasket ka mokhoa o ts'oanang, ho netefatsa phepelo e ntle ea khatello ea maikutlo ho pholletsa le flange.
Sefahleho se Sephara (FF)
Flat face socket weld flanges e sebelisoa ha mating flange kapa khokahano le eona e bataletse. Sefahleho sa mofuta ona hangata se sebelisoa-ha ho sebelisoa khatello ea maikutlo moo kotsi ea ho kobeha kapa ho kobeha e fokotsehileng. Hangata li-flange tsa sefahleho li sebelisoa maemong ao thepa ea flange e leng brittle kapa e utloang khatello ea maikutlo, joalo ka lits'ebetsong tsa tšepe.
Mofuta o Kopanetsoeng oa Lesale (RTJ)
RTJ socket weld flanges e etselitsoe-khatello e phahameng le{1}}mecheso e phahameng. Sefahleho sa RTJ se na le groove e kenyang selikalikoe sa tšepe sa gasket, se fana ka tšepe-ho-metal seal e sebetsang hantle haholo ho thibela ho lutla tlas'a maemo a feteletseng. Mofuta ona oa sefahleho o atisa ho sebelisoa indastering ea oli le khase, moo ho tšepahala le botšepehi ba ho tiisa ho bohlokoa haholo.
Weld Neck Flange Dimensions
1/2 ″ NPS flange e na le bophara ba kantle ba 3.50 ″ e nang le libolulo tse 'ne, bophara ba ka hare ba 0.62 ″, le botenya ba sefahleho bo phahameng ba 1.88 ″.
Bakeng sa li-flange tsa 3/4 ″ NPS, bophara bo ka hare ke 0.82 ″ ha bophara ba kantle ke 3.88 ″ ka botenya ba sefahleho bo phahamisitsoeng ba 2.06 ″ le masoba a mane bakeng sa liboutu.
The 1″ NPS weld neck flange e na le bophara ba ka ntle ba 4.25 ″, bophara ba ka hare ba 1.05 ″, botenya ba sefahleho sa 2.19 ″, le palo e tloaelehileng ea boltholesis bone.
The 2 ″ NPS weld neck flange e na le bophara ba ka hare ba 2.07 ″ le bophara bo kantle ba 6.00 ″ ka botenya ba sefahleho ba 2.50 ″.
Flange ea 5 ″ NPS e na le bophara ba ka hare ba 5.05 ″ le bophara bo kantle ba 10.00 ″, sefahleho se phahamisitsoeng se nang le botenya ba 3.50 ″.
Flange ea 6 ″ NPS e na le bophara ba ka hare ba 6.065 ″ le bophara bo kantle ba 11.00 ″ ka botenya ba sefahleho sa 3.50 ″.
Bakeng sa li-flange tsa 10 ″ NPS, bophara bo ka hare ke 10.02," 'me bophara bo ka ntle ke 16 ″, sefahleho se phahamisitsoeng se nang le botenya ba 4.00 ″.
Flange ea 20 ″ NPS e na le bophara ba ka hare ba 19.25 ″ le bophara ba kantle ba 27.50 ″ ka botenya ba sefahleho ba 5.69 ″.
Qetellong, 24 ″ NPS weld neck flange e na le bophara ba kahare ba 23.25 ″ le bophara ba kantle ba 32.00 ″.
1.Mahala a forged kapa mojule oa fored
2.Rough machining tshebetso, ho tlosa bokaholimo forged oxidized batsho letlalo.
3.100% Tlhahlobo ea Ultrasonic ASTMA388
4.Mocheso oa Phekolo ho ea ka kopo, E Tloaelehile, E Tingoe, E halefile ....
5.Teko ea boima
6.Finishing Process ho boemo ba dimensional bo hlokehang ke setšoantšo.
7.100% Tlhahlobo ea Magnetic ASTM E709 le tlhahlobo ea 100% ea dimensional
8.Painting kapa oli e sireletsang TECTYL 506 kapa e tšoanang
9.Ho paka ka mabokose
